灵活而强大 - 这是我们的创新泵型 FLEXCORE系列
Flexible and powerful - this is our new pump innovation FLEXCORE.
它不仅可以安装在各种管道布局中，还以其高达40 barg的出色工作性能给人留下深刻印象。
Not only can it be installed in various piping layouts, it also impresses with its outstanding performance up to 40 barg.
对于新泵系列的开展，我们首先推出了FLEXCORE 25和FLEXCORE 32，其流量分别从7 L/min到50 L/min和从15 L/min 到100 L/min。
For the start of the new pump series we introduce the FLEXCORE 25 and FLEXCORE 32 with flow rate from 7 L/min to 50 L/min and from 15 L/min to 100 L/min.
FLEXCORE系列产品
Made in Germany—德国制造；
Delivery from stock—快速发货；
Further pump sizes from 2020—2020更多型号推出；

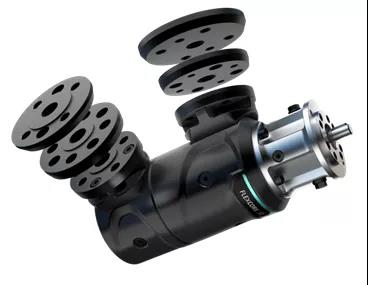

各种管道布局中可调整安装
Adjustable in various piping layouts
极其多变：进出口法兰均可4 x 90。旋转，可灵活安装。
Extremely variable: Flexible to install due to 4 x 90° turnable suction and discharge flanges.
侧进侧出
Side-Side
旋转90°
90。Rotation
旋转180°
180。Rotation
可调法兰连接
Flexible flange connections
可选择多种法兰连接型式：DIN, ASME and SAE.
There is a great choice of different flange connections: Chose between DIN, ASME and SAE.

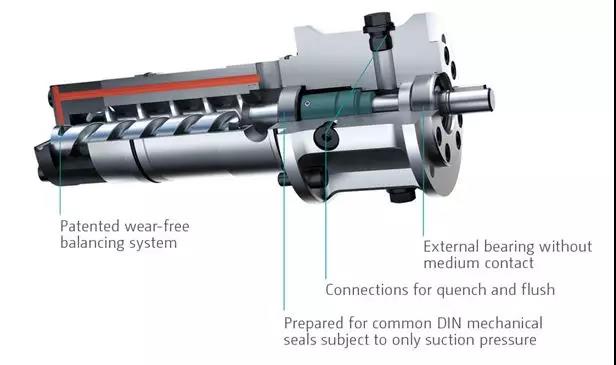

使用寿命的极大延长
Enormous increase of lifetime
硬化处理的螺杆组结合专利平衡系统，可减少磨损。优化设计的机械密封可确保最长使用寿命。
Less wear due to hardened spindle set combined with patented balancing system. Optimized mechanical seals guarantee maximum lifetime.
由于具有预组装、易于更换的集装组件，最大限度地减少了停机时间。最重要的是，它是可现货供应。
Due to a pre-assembled, easy-to-replace cartridge unit, which minimizes downtime. And best of all, it is available from stock.

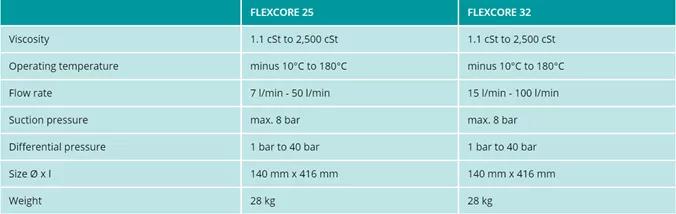

性能参数
FLEXCORE | PERFORMANCE DATA
